Vibrating Screen
Contact Now
Products Details
Description
The vibrating screen vibrates through a vibrating motor or vibration exciter, so that the materials move on the screen surface, thus realizing the separation of materials with different particle sizes.
Features
1) Efficient screening: the vibration frequency and amplitude of the vibrating screen can be adjusted to meet the screening requirements of different materials.

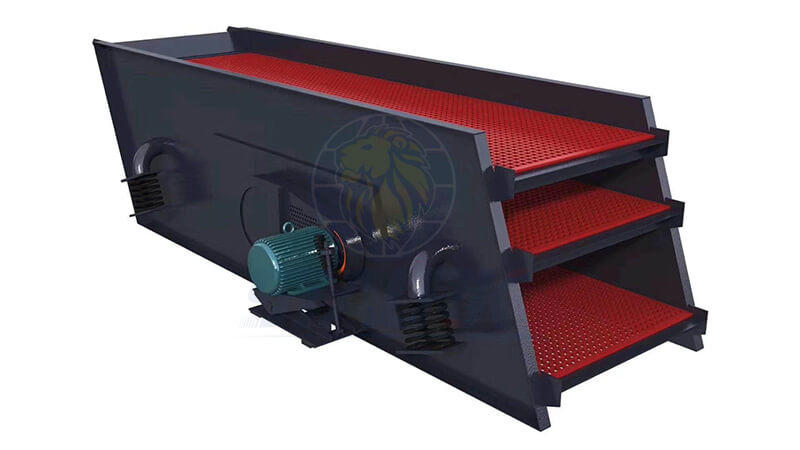

2) Multi-layer screening: Single-layer or multi-layer screens can be designed as required to realize multi-stage screening.
3) Simple structure and easy maintenance: the vibrating screen has compact structure, convenient operation and low maintenance cost.
4) Wide application range: it can be used in many working conditions such as dry screening, wet screening and slurry filtration.
Advantages
1. Due to the strong vibration of the screen box, the phenomenon of material blocking the screen holes is reduced, so that the screen has high screening efficiency and productivity.
2. the structure is simple, and the screen surface is convenient to disassemble and replace.
3.The power consumption per ton of materials is less.
It runs smoothly and has low noise.
Working Principle
The vibrating screen makes the screen box vibrate periodically in the horizontal, vertical or inclined direction through the exciting force generated by the vibrating motor or vibration exciter. After the material enters the screen surface from the inlet, under the action of vibration force, smaller particles fall through the screen, while larger particles move along the screen surface and are discharged from the outlet, thus realizing the classification or filtration of the material.
Application

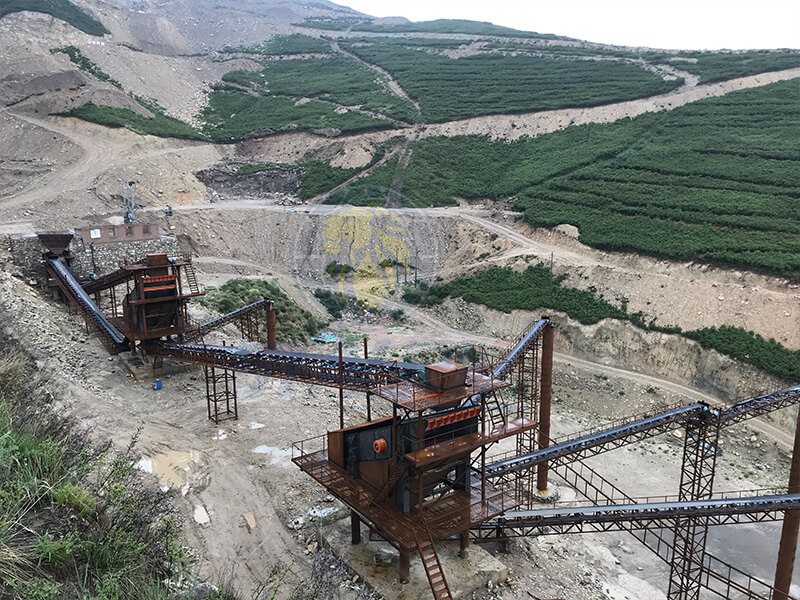

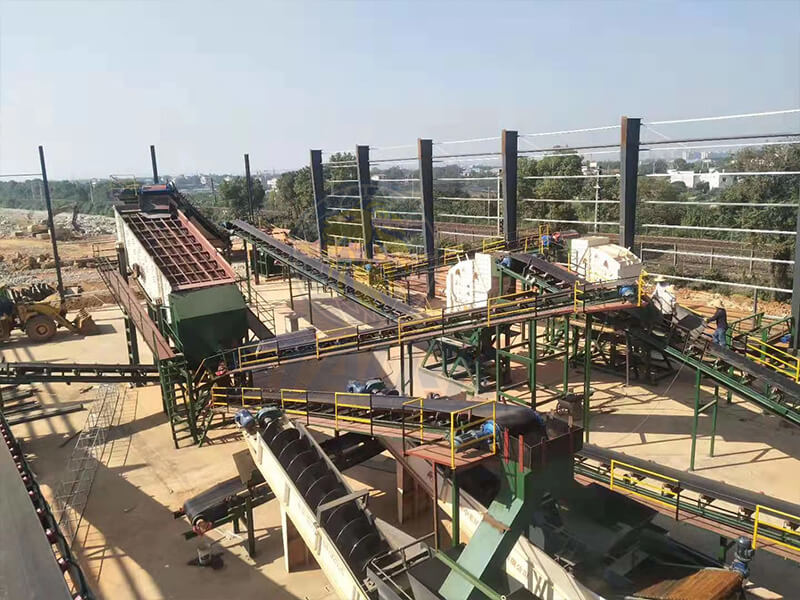

Vibrating screen is widely used in mining, metallurgy, chemical industry, building materials, food, medicine and other industries to deal with granular, powdery or serous materials.
Technical Parameters
Model | Screen Size (mm) | Deck Layers | Mesh Size (mm) | Power (kW) | Capacity (t/h) | Vibration Frequency (rpm) | Amplitude (mm) |
VS-1000 | 1000×2000 | 1-3 | 0.1-50 | 1.5-3.0 | 5-20 | 1500 | 4-6 |
VS-1200 | 1200×2400 | 1-3 | 0.1-50 | 2.2-4.0 | 10-30 | 1500 | 4-6 |
VS-1500 | 1500×3000 | 1-3 | 0.1-50 | 3.0-5.5 | 20-50 | 1500 | 4-6 |
VS-1800 | 1800×3600 | 1-3 | 0.1-50 | 4.0-7.5 | 30-80 | 1500 | 4-6 |
VS-2000 | 2000×4000 | 1-3 | 0.1-50 | 5.5-11.0 | 50-120 | 1500 | 4-6 |
VS-2400 | 2400×4800 | 1-3 | 0.1-50 | 7.5-15.0 | 80-200 | 1500 | 4-6 |
