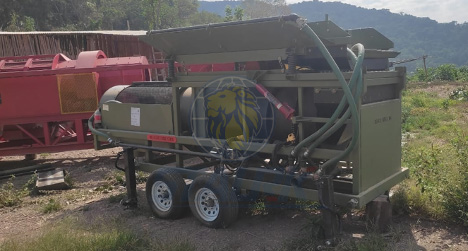

Portable Gold Separation Station
Contact
Products Details
Description
Portable gold separation station is usually used for small-scale gold mining, exploration or gold recovery in remote areas. This equipment combines a variety of separation technologies, such as gravity separation, screening, centrifugal separation, etc., and can extract gold particles from raw materials efficiently.
Features
1)portability: the equipment is compact in design, easy to transport and install, and suitable for use in remote or inaccessible areas.
2)High efficiency: With advanced separation technology, gold can be recovered efficiently, and the recovery rate can usually reach more than 95%.
3)Environmental protection: water is usually used as the separation medium to reduce the use of chemical agents and reduce the impact on the environment.
4)Multifunctional: it is suitable for various types of ores and placers, including alluvial gold mines and rock gold mines.
Advantages
1. Without fixed facilities, it can be deployed quickly.
2. Suitable for small-scale or temporary mining operations.
3. Simple operation.
4. Convenient maintenance.
Working Principle
By feeding gold-bearing ore or sand into equipment, gold is separated from other impurities by gravity separation, screening and centrifugal force. The equipment usually includes core components such as feeding system, screening device, centrifuge or shaking table. Through washing, vibration and centrifugation, high-density gold particles are deposited and concentrated, and finally the efficient recovery of gold is realized.
Application
Portable gold separation station is applied to small-scale gold mining, gold exploration, placer gold recovery and gold extraction in remote areas.
Technical Parameters
Model | Capacity (Tons/Hour) | Power (kW) | Weight (kg) | Dimensions (L x W x H, mm) | Water Consumption (m³/h) | Recovery Rate (%) |
PGS-100 | 1-2 | 5.5 | 280 | 2000 x 1000 x 1500 | 1.5-2.0 | 95-98 |
PGS-200 | 2-4 | 7.5 | 350 | 2200 x 1200 x 1600 | 2.0-3.0 | 96-98 |
PGS-300 | 4-6 | 11 | 480 | 2500 x 1400 x 1800 | 3.0-4.0 | 97-98 |
PGS-500 | 6-10 | 15 | 650 | 3000 x 1600 x 2000 | 4.0-5.0 | 97-99 |
