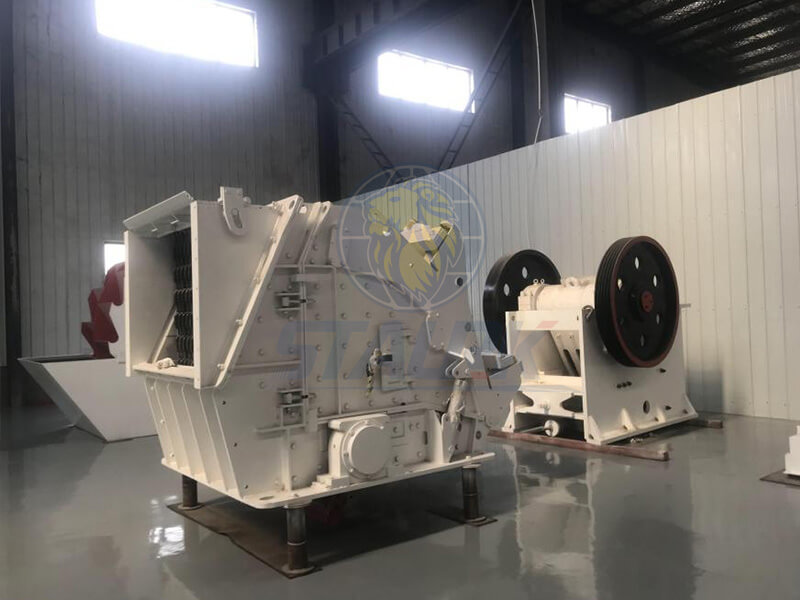

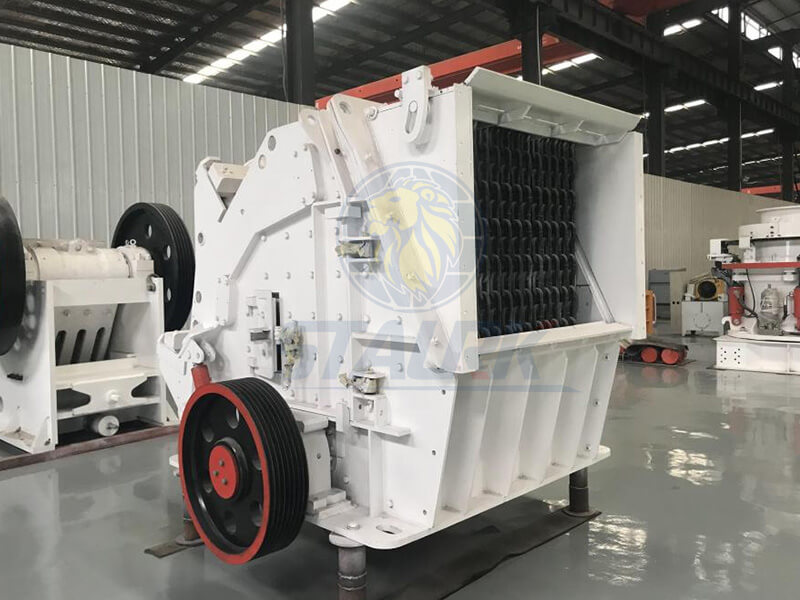

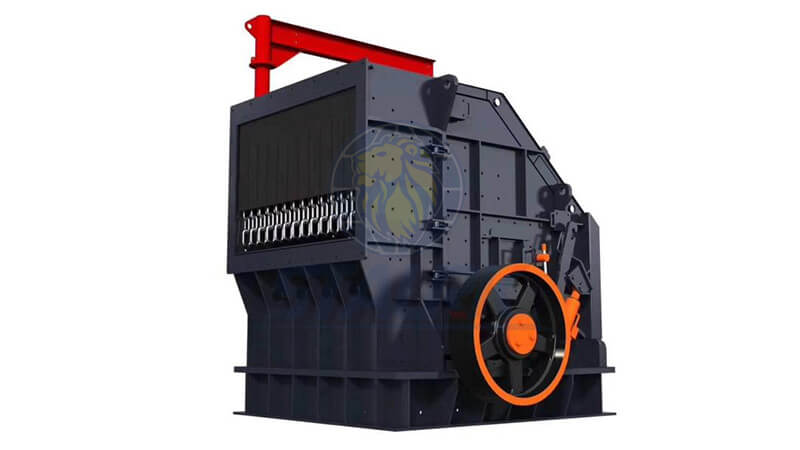

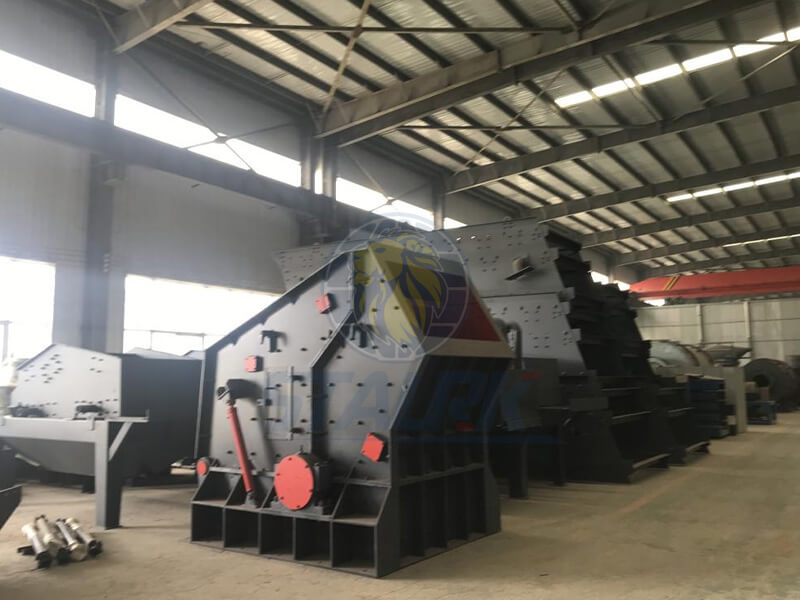

Impact Crusher
Contact Now
Products Details
Description
Impact crusher is a versatile and efficient crushing machine which designed to crush materials with high compressive strength, such as rocks, ores, and concrete. It operated by using high-speed impact forces to crush materials, which are fed into the crushing chamber and struck by blow bars mounted on a rotating rotor.
Features
1.High Crushing Efficiency: using high-speed impact forces to crush materials, ensuring effective and efficient crushing with a large reduction ratio.
2.Superior Particle Shape: Crushing mechanism produces uniformly cubic-shaped particles
3.Versatility: can handling a wide range of materials, including those with high moisture content or varying hardness, from soft to highly abrasive.
4.Easy Maintenance and Adjustability: Simple design, easy access to wear parts, and flexible adjustment of discharge size, reducing downtime and operational costs.
Advantages
1.More effective in processing materials with high moisture content, effectively preventing material blockage.
2.Suitable for a wider range of material hardness.
3.Convenient and flexible adjustment of the discharge particle size, with a broad adjustment range.
4.Wear parts is minimal, metal utilization rate is high.
Working Principle
The impact crusher is a type of crushing machine that utilizes impact energy to break down materials. During operation, the rotor rotates at high speed driven by the motor. When materials enter the impact zone of the hammer plate, they collide with the hammer plate on the rotor and are crushed. The materials are then thrown into the impact device for further crushing and rebound back to the hammer plate zone to be crushed again. This process repeats continuously. Materials are progressively reduced in size as they pass through the first, second, and third impact chambers until they reach the desired particle size and are discharged through the outlet.
Application
Impact crusher are widely used in mining, quarrying, recycling, and construction industries for primary, secondary, and tertiary crushing applications. Their ability to handle materials of varying hardness and size makes them a popular choice for producing high-quality aggregates.
Technical Parameters
Model | Max Feed Size (mm) | Capacity (t/h) | Power (kW) | Weight (t) | Rotor Size (mm) | Application |
PF1010 | 350 | 50-80 | 55-75 | 12 | 1000×1050 | Medium crushing |
PF1210 | 400 | 70-130 | 110 | 17 | 1250×1050 | Medium to large crushing |
PF1315 | 500 | 120-250 | 200 | 19 | 1320×1500 | High-capacity crushing |
PF1520 | 700 | 300-550 | 315-400 | 30 | 1500×2000 | Mining, quarrying |
CI5X1415 | 800 | 400-800 | 400 | 28 | 1400×1500 | Aggregate production |
CI5X1620 | 1000 | 500-1000 | 500 | 35 | 1600×2000 | High-performance crushing |
