High Efficiency Thickener
Contact Now
Products Details
Description

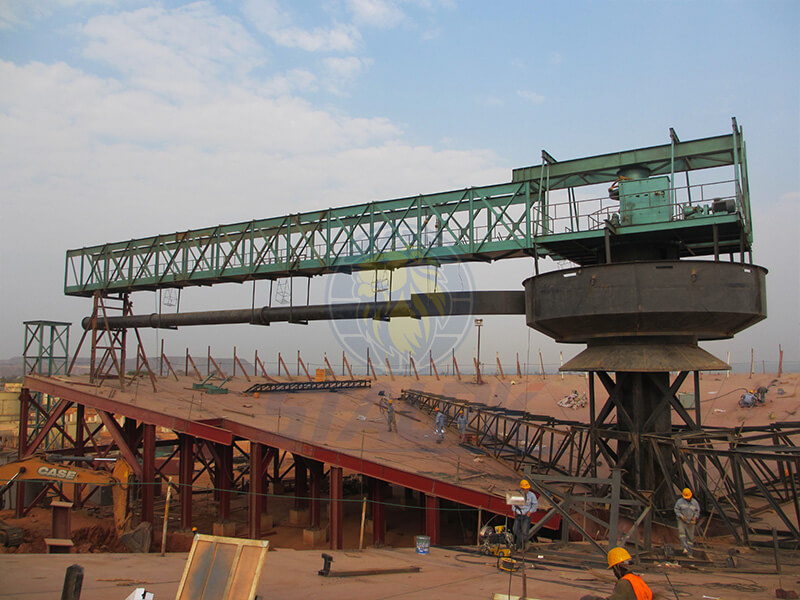

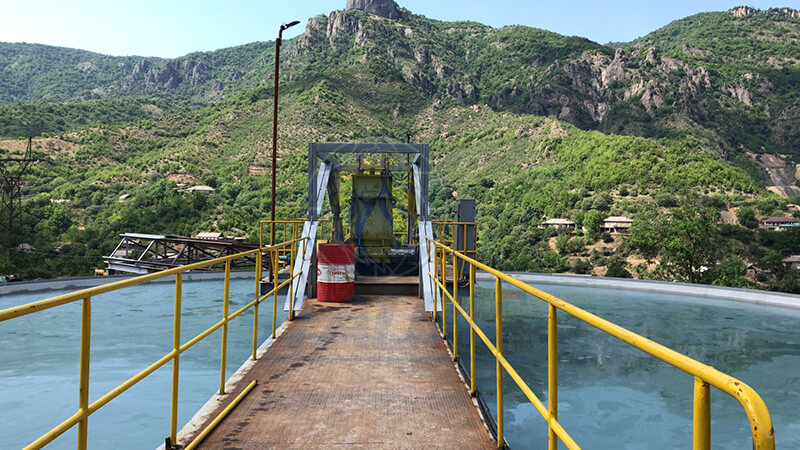

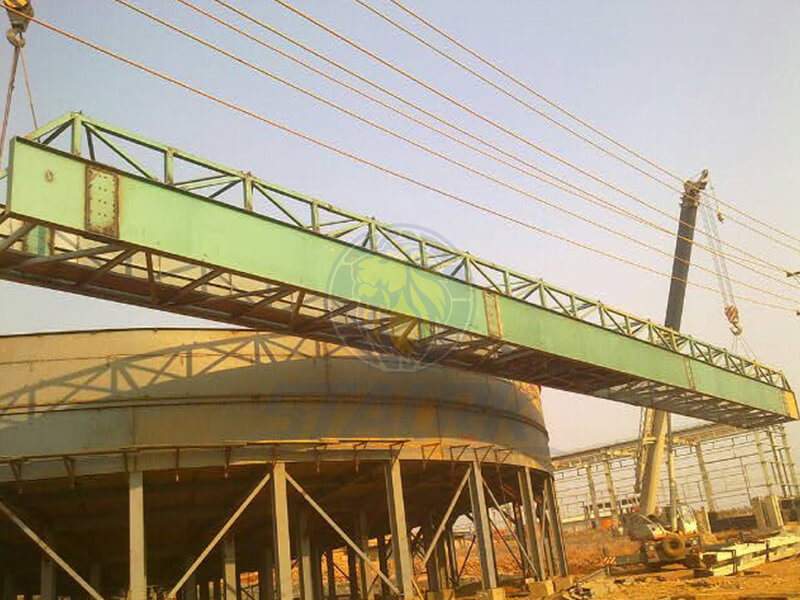

The main components of the high efficiency thickener include a circular concentration tank and a rake scraper. The solid particles sink to the bottom under the action of gravity, and the upper part is clear liquid.
Features
1)The feed of the high efficiency thickener is cut-in, which improves the operation stability and processing capacity of the equipment.
2)The scraper structure improves the collection efficiency.
3) The new type of ash discharge port ensures the smooth discharge port at the bottom of the thickener.
4) Improvement of processing capacity and dewatering effect.
Advantages
1. Efficient Sedimentation: High-efficiency thickeners significantly improve sedimentation speed by rational use of flocculants and bottom feed distribution.
2. Effective Solid-Liquid Separation: Based on gravity sedimentation, solid particles in the slurry settle to the bottom, forming a concentrated sludge layer, while clear supernatant is discharged through the overflow weir, achieving efficient separation.
3.Simple Structure and Operation: High-efficiency thickeners feature a rational design and easy operation.
4. Wide Applicability: They perform exceptionally well in settings requiring solid-liquid separation, such as hydrometallurgy, mineral processing plants, and chemical plants.
Working Principle
High efficiency thickener realizes solid-liquid separation through gravity sedimentation. After the pulp is mixed with flocculant, it enters the thickener through the central vertical tube, and the pulp spreads around under the guidance of the guide plate and enters the pre-formed sludge settling layer. Flocculants and particles in the pulp form flocs and settle to the bottom, while the liquid rises through the sediment layer to form clear liquid. The rake pushes the dense pulp to the central sludge outlet hood and discharges it by gravity or pump.
Application
High efficiency thickener is suitable for many industrial fields, including metallurgy, chemical industry, coal, mineral processing and environmental protection.
Technical Parameters
Model | Diameter (m) | Processing Capacity (t/h) | Motor Power (kW) | Underflow Concentration (%) | Overflow Clarity (NTU) | Weight (kg) |
HT-6 | 6 | 50-100 | 2.2 | 50-60 | ≤200 | 5,000 |
HT-9 | 9 | 100-200 | 3.7 | 55-65 | ≤150 | 8,000 |
HT-12 | 12 | 200-400 | 5.5 | 60-70 | ≤100 | 12,000 |
HT-15 | 15 | 400-600 | 7.5 | 65-75 | ≤50 | 18,000 |
HT-18 | 18 | 600-800 | 11 | 70-80 | ≤30 | 25,000 |
HT-24 | 24 | 800-1200 | 15 | 75-85 | ≤20 | 35,000 |
