Description

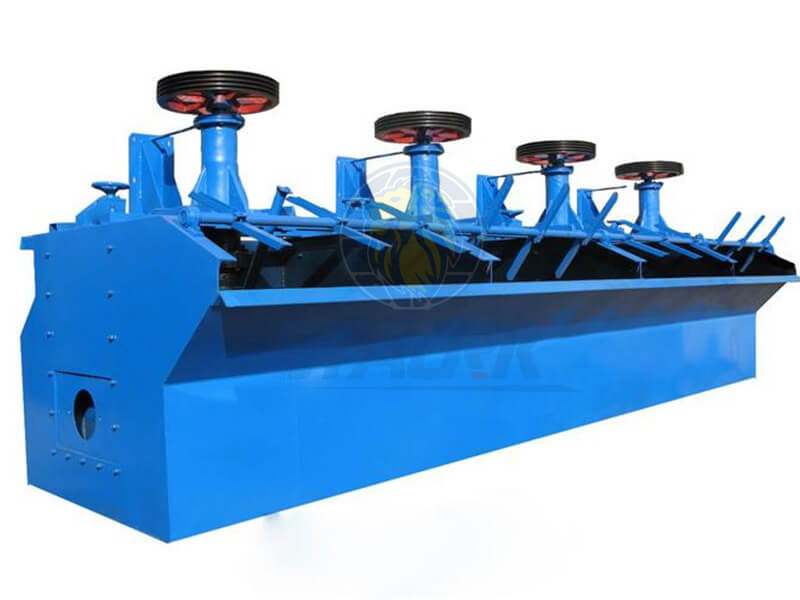

In the flotation machine, the pulp treated by adding chemicals is aerated by stirring, so that some ore particles are selectively fixed on bubbles; Float to the surface of pulp and scraped out to form foam products.
Features
1)Reasonable structure and smooth operation.
2)Self-suction of air and gravity flow of pulp.
3) Efficient aeration and stirring.
4) High concentrate grade and recovery rate.
Advantages
1. High sorting accuracy: Flotation machine can provide high sorting accuracy.
2. Large handling capacity: Flotation machine has strong handling capacity.
3. Low operating cost: it can save about 1/3~1/2 electric energy.
4. Convenient maintenance: there are no moving parts in the tank of the flotation machine, which is easy to maintain and overhaul.
Working Principle
Flotation machine is mainly based on the contact and adhesion difference between mineral particles and bubbles in flotation tank. Flotation machine fully mixes pulp and air through mechanical stirring device, and generates a large number of tiny bubbles, which contact and adhere to mineral particles, thus realizing the separation of minerals.
Application
Flotation machine is mainly used to separate non-ferrous metals such as copper, zinc, lead, nickel and gold, and can also be used for roughing and cleaning ferrous metals and nonmetals.
Technical Parameters
Model | Volume (m³) | Cell Size (mm) | Impeller Diameter (mm) | Power (kW) | Capacity (m³/min) | Single Cell Weight (kg) |
BF-0.37 | 0.37 | 740×740×750 | 286 | 1.5/1.1 | 0.2–0.4 | 470 |
BF-2.0 | 2.0 | 1400×1450×1120 | 500 | 7.5/1.1 | 1–2 | 1750 |
BF-8 | 8 | 2250×2850×1400 | 760 | 30/1.5 | 4–8 | 4130 |
BF-16 | 16 | 2850×3800×1700 | 850 | 37/1.5 | 8–16 | 8320 |
XCF/KYF-1 | 1 | 1000×1000×1100 | 400/340 | 5.5/4/1.1 | 0.2–1 | 920/1056 |
XCF/KYF-10 | 10 | 2400×2400×2100 | 760/660 | 22/15/1.5 | 3–10 | 4894/4334 |
JRF500/1CL | – | 1700×1400×6200 | – | 7.5 | 0–8 | – |
JRF3224/6R | – | 4592×4240×5344 | – | 135 | 300 | – |
GF-0.35 | 0.35 | 700×700×730 | – | 1.5 | 0.1–0.2 | 470 |
GF-16 | 15 | 2850×3800×1700 | – | 45 | 3–8 | 8320 |
