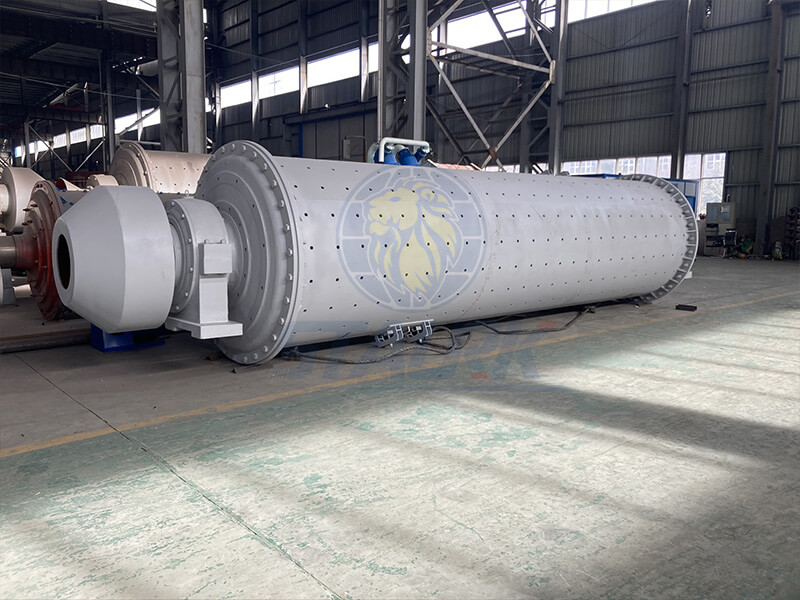

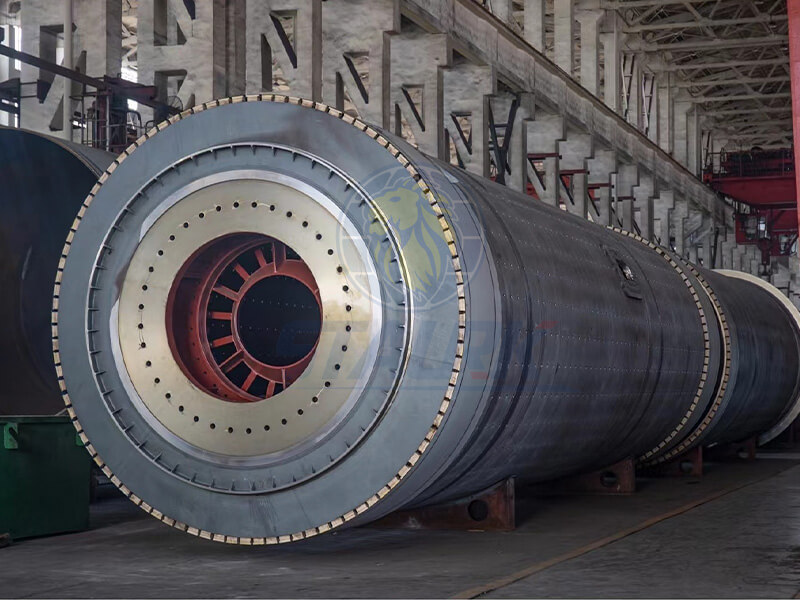

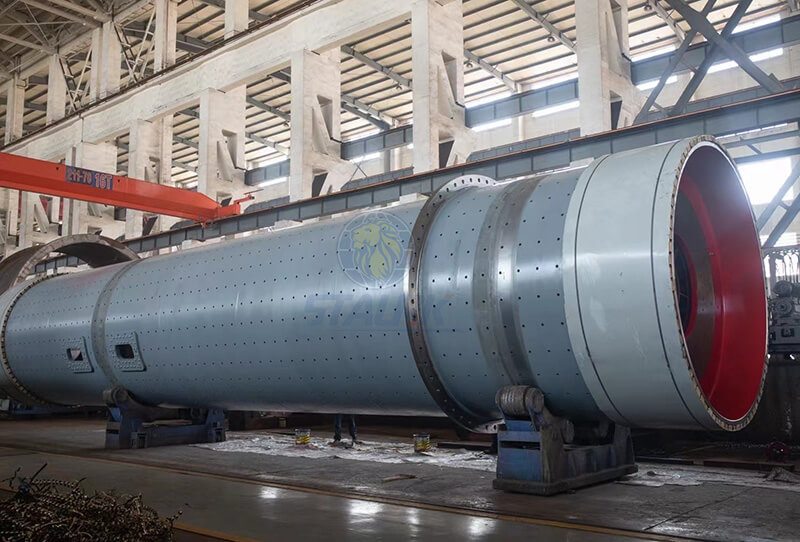

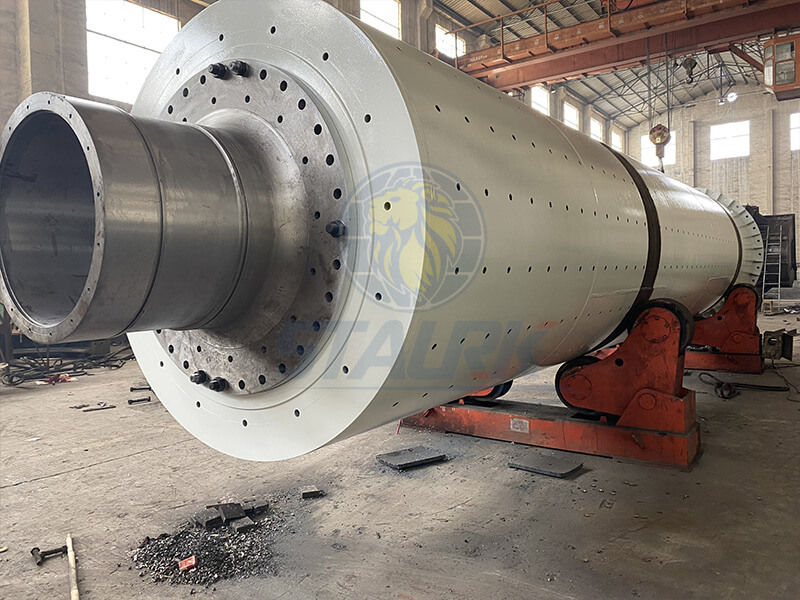

Cement Mill
Contact Now
Products Details
Description
Cement mill has the characteristics of strong adaptability to materials, continuous production, a large crushing ratio, and easy-to-adjust the fineness of grinding products. The cement ball mill can be used not only in dry method cement production lines but also in wet method cement production lines. In addition, it can realize simultaneous grinding and drying, which is the important equipment for cement grinding.
Features
1) Cement ball mill is suitable for grinding hard materials with high grinding efficiency and low power consumption.
2) It can work continuously, with large production capacity and easy adjustment of product fineness.
3) Low noise and vibration.
4) Low failure rate and high output.
Advantages
1. High capacity: clinker and additives can be quickly ground into fine powder to improve production efficiency.
2. Uniform particle size: ensure the uniform size of cement particles and improve product quality.
3. Low energy consumption: adopt advanced technology to reduce power consumption and save energy.
4. Flexible adjustment: the grinding fineness can be adjusted according to the demand to meet the requirements of different cement varieties.
Working Principle
The cement mill is a cylindrical rotating device driven by external gears, featuring two chambers and a grid-type ball mill. Material enters the first chamber through a hollow shaft with a spiral feed mechanism. This chamber contains stepped or corrugated liners and steel balls of various sizes. The rotation of the cylinder generates centrifugal force, lifting the steel balls to a certain height before they fall, crushing and grinding the material. After coarse grinding in the first chamber, the material passes through a single-layer partition into the second chamber, which is lined with flat liners and contains steel balls for further grinding. The powdered material is discharged through the discharge grate, completing the grinding process.
Application
Widely used in cement, silicate products, new building materials, refractories, fertilizers, ferrous and non-ferrous metal dressing, glass ceramics and other production industries, dry or wet grinding of various ores and other grindable materials.
Technical Parameters
Model | Cylinder Diameter | Cylinder Length (mm) | Rotation Speed (rpm) | Power (kW) | Capacity | Grinding Media Load | Weight |
CM-2.2×7.5 | 2200 | 7500 | 21 | 380 | 15-20 | 35 | 85 |
CM-2.4×8 | 2400 | 8000 | 20 | 500 | 20-25 | 45 | 110 |
CM-2.6×10 | 2600 | 10000 | 19 | 800 | 30-35 | 60 | 150 |
CM-3.0×11 | 3000 | 11000 | 18 | 1250 | 40-50 | 80 | 200 |
CM-3.2×13 | 3200 | 13000 | 17 | 1600 | 50-60 | 100 | 250 |
CM-3.8×13 | 3800 | 13000 | 16 | 2500 | 70-80 | 120 | 350 |
